Mars ~ Meridiani Planum Iron Prospects
Part Three

More "Blueberries" & Earth Equivalents

History - Continued

What Happened to the Water on Mars?

The Evidence for Water On Mars
Part Three
More "Blueberries" & Earth Equivalents

“On Earth, whenever we find water, we find life – in surface water or underground water, hot water or cold water – any place there is water on Earth there are microbes, there is life.” “That’s the bottom line: hematite is linked to life.”
 - Bill Parry

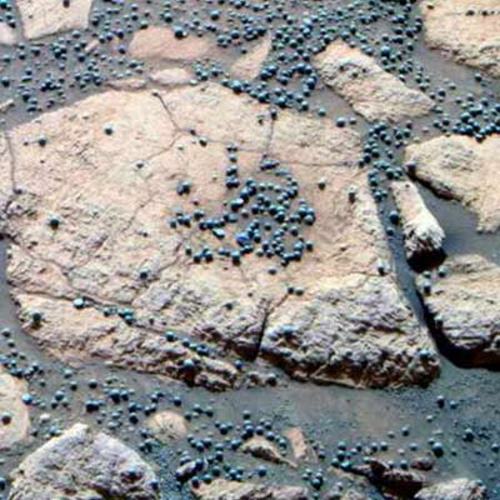

"Berry Bowl"
They were nicknamed "blueberries" because of their grey-blue color and the way they are embedded in the Martian rocks "like blueberries in a muffin."
.

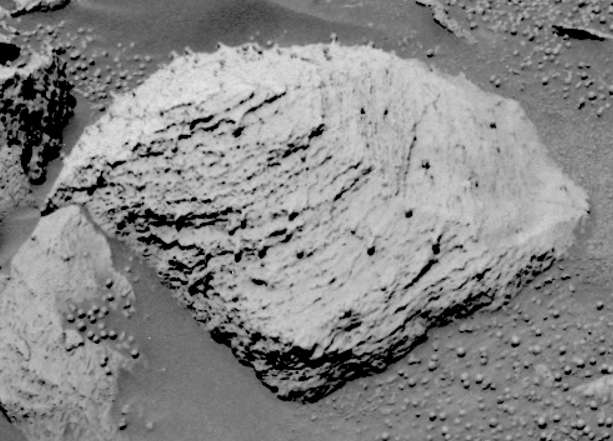

"Pilbara Rock"
.

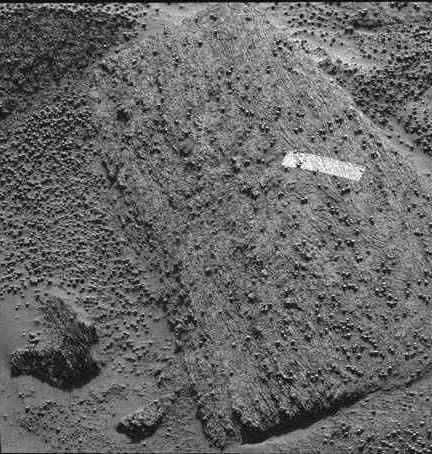

"Pyrrho Rock"
.

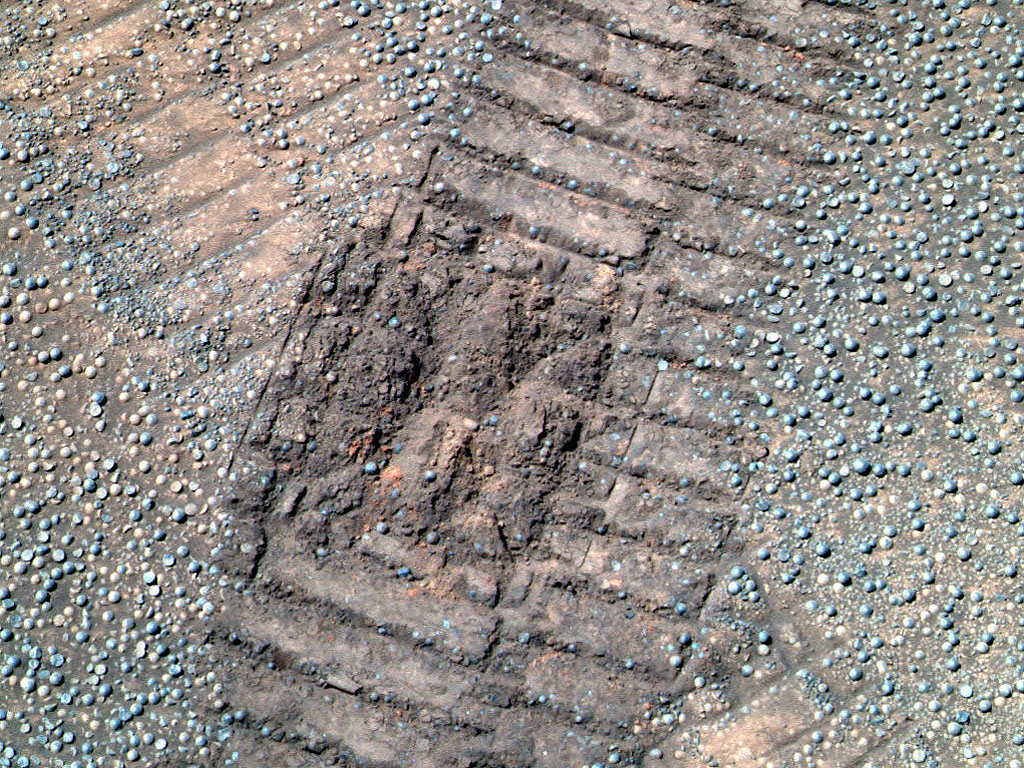

Pancam image of rover tracks cutting through fields of blueberries.


Another Possibility
.
Earth "Blueberries"

International Sand Collectors Society

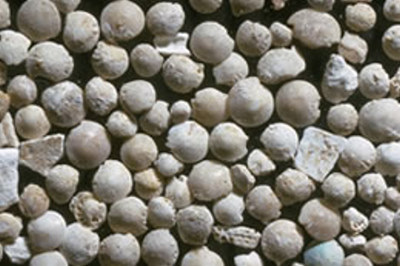

Sand composed of disc-shaped fossils called forams, Belgium. This sand was formed on an ocean floor, where the shells of dead forams fell to the bottom.


Study of Hematite Concretions

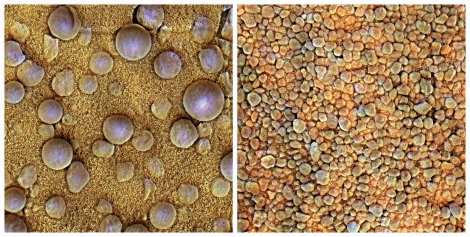

Mars "Blueberries"

Earth Has ‘Blueberries’ Like Mars - June 16, 2004

Press Release From University of Utah Public Relations

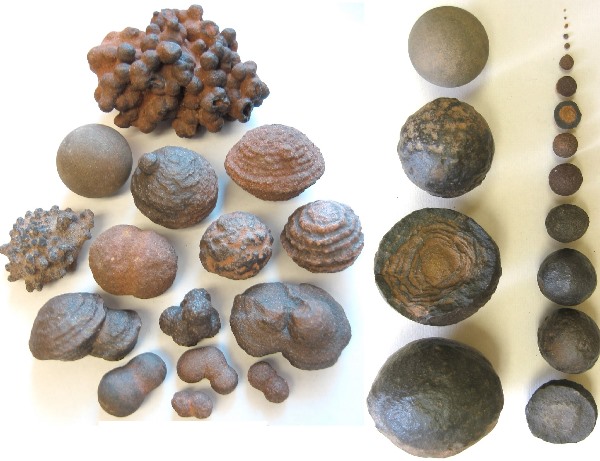

‘Moqui Marbles’ Formed in Groundwater in Utah’s National Parks

Even before marble-shaped pebbles nicknamed “blueberries” were discovered on Mars by the Opportunity rover, University of Utah geologists studied similar rocks in Utah’s national parks and predicted such stones would be found on the Red Planet.

In a study published in the June 17 issue of the journal Nature, the Utah researchers suggest both the Martian and Utah rocks – known as hematite concretions – formed underground when minerals precipitated from flowing groundwater.

“We came up with the ‘recipe’ for blueberries,” says Marjorie Chan, chair and professor of geology and geophysics at the University of Utah. “Before Opportunity landed, we thought there might be hematite concretions on Mars. That was based on our study of hematite-rich regions of southern Utah, where hematite balls are found in national parks and have long been a geological oddity that shows up in many rock shops.”

The round rocks are found in southern Utah in Zion and Capitol Reef national parks, Grand Staircase-Escalante National Monument, Snow Canyon State Park and the Moab area.

Their diameters range from one-25th of an inch to 8 inches or more. They are known to New Agers as “moqui marbles.” Some are the size of small blueberries like those on Mars.

Chan and her colleagues believe the Utah concretions formed perhaps 25 million years ago when minerals precipitated from groundwater flowing through much older Navajo sandstone, the spectacular red rock in southern Utah.
.

The National Aeronautics and Space Administration’s Opportunity robot rover vehicle landed on Mars’ Meridiani Planum on Jan. 25. Five days later, it detected hematite within gray pebbles dotting the landing site, and such pebbles later were spotted embedded in a rock outcrop. Cornell University scientist Steve Squyres, who heads the Opportunity science team, said Feb. 9 the small spheres look “like blueberries in a muffin” and might be concretions.

In their Nature paper, Chan and colleagues say the Martian “blueberries” may have formed in a similar manner to those in Utah, namely, when significant volumes of groundwater flowed through permeable rock, and chemical reactions triggered minerals to precipitate and start forming a layered, spherical ball.

“Given the similarities between the marbles in Utah and on Mars, additional scientific scrutiny of the Utah concretions and how they form will probably shed further light on the similar phenomenon on Mars,” University of Washington scientist David Catling wrote in a Nature commentary accompanying the University of Utah study.

The concretions may bear on the search for evidence of past life on Mars because bacteria on Earth can make concretions form more quickly. Chan and colleagues plan to analyze whether there is evidence of past microbial activity in Utah concretions.

Chan conducted the new study with geology graduate student Brenda Beitler and emeritus professor of geology Bill Parry, both at the University of Utah; geologist Jens Ormo of the National Institute of Aerospace Technology in Madrid, Spain; and planetary scientist Goro Komatsu of the International Research School of Planetary Sciences at G. d'Annunzio University in Pescara, Italy.


Martian blueberries and marbles of the spirits

The Utah and Mars hematite concretions have similarities and differences.

In Utah and likely on Mars, “you have rocks that had iron in them originally,” says Beitler. “Fluids travel through these rocks and leach out the iron. The water moves through cracks, holes, layers or pores until it reaches some place where the chemistry is different and causes the iron to precipitate out of the water as hematite.”

A major difference is that the Martian “blueberries” probably are pure hematite – a form of iron oxide that is gray because it has a larger crystal structure than the reddish form of iron oxide, commonly known as rust. The Utah concretions are mostly sandstone, cemented by hematite that makes up a few percent to perhaps one-third of the rock. The Martian concretions likely precipitated from acidic groundwater. Those in Utah precipitated when hydrocarbon-rich, briny fluids encountered oxygen-rich groundwater.

After the Utah concretions formed in groundwater, the surrounding Navajo sandstone slowly eroded away over millions of years, so the hard, erosion-resistant concretions accumulated on the ground, often in great numbers.

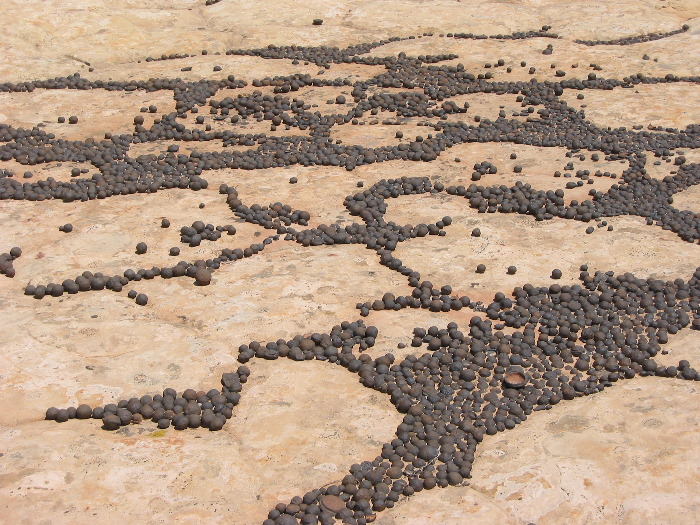

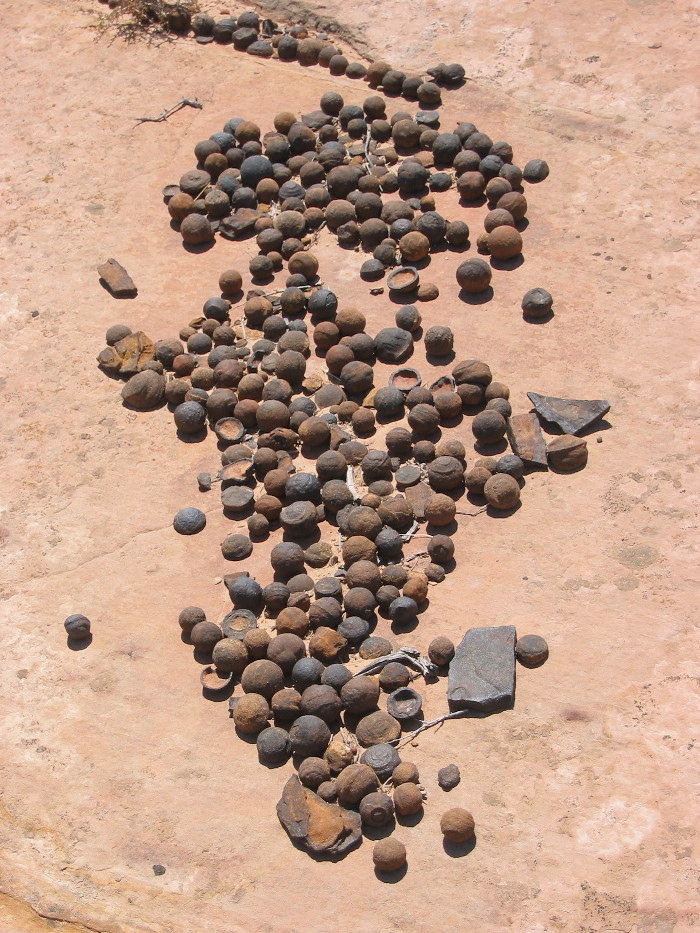

“The loose Utah concretions roll like marbles into depressions, forming ‘puddles,’ just like their Martian counterparts,” Catling wrote. “The Hopi Indians have a legend that ‘moqui,’ or spirits of their ancestors, played games of marbles with the hematite concretions in the American southwest. Although anthropologists discourage use of the word ‘moqui’ to be respectful to Native Americans, New Age gem collectors sell concretions as ‘moqui marbles’ and claim that they are endowed with metaphysical powers.”


Like Southern Utah, Like Mars

Chan says her team long suspected concretions like those in Utah might be found on Mars. The idea first was suggested by Ormo and Komatsu in a 2003 scientific abstract that got little if any attention. Ormo contacted Chan in spring 2003 and they started collaborating.

The researchers completed a much broader but yet-unpublished study last year indicating that several geological features were seen both in aerial photos of southern Utah’s hematite-rich areas and in images of Mars’ hematite regions taken by orbiting spacecraft. These features include large rocky landforms shaped like knobs, pipes and buttes, and places where bleached-looking rock forms white sediment beds or ring-shapes on the surface. Some of the pipes and other features are tens of yards long or wide.

The geologists determined the processes responsible for these large-scale features in Utah involved the flow of briny groundwater saturated with natural gas that bleaches sandstone, and that such groundwater flow, the precipitation of hard hematite-cemented rock and the later erosion of surrounding softer rock also would explain the formation of the erosion-resistant pipes, buttes, knobs and concretions. They concluded a similar process could have formed concretions and larger landforms on Mars.

Chan says studying concretions from Utah and Mars “will help us learn more about the history of Mars. When we have something to compare it to, it’s a lot easier to figure out.”

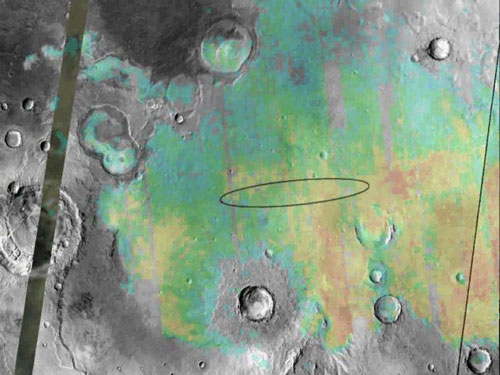

Colored Area represents the large area of Hematite on Meridiani Planum. The oval is the target landing site for Opportunity
"The question is whether this will be part of a still larger story," Knoll said at a press briefing today at NASA's Jet Propulsion Laboratory, Pasadena, Calif. Spherules below the outcrop in the crater apparently weathered out of the outcrop, but Opportunity has also observed plentiful spherules and concentrations of hematite above the outcrop, perhaps weathered out of a higher layer of once-wet deposits. The surrounding plains bear exposed hematite identified from orbit in an area the size of Oklahoma -- the main reason this Meridiani Planum region of Mars was selected as Opportunity's landing site."

Hematite, Water and Life

In 1998, the Mars Global Surveyor orbiting Mars detected what appeared to be a large area of hematite on Meridiani Planum. The broad plain was picked as Opportunity’s landing site because scientists wanted to study the hematite, which almost always forms in water.

Scientists are interested in whether water once existed on Mars (or now exists beneath its surface) because water is necessary for life – and the possibility of life beyond Earth is one of the great questions long pondered by humanity.

“On Earth, whenever we find water, we find life – in surface water or underground water, hot water or cold water – any place there is water on Earth there are microbes, there is life,” says study co-author Bill Parry. “That’s the bottom line: hematite is linked to life.”

While other evidence from Opportunity suggests there once may have been standing water on Meridiani Planum, the Utah team’s study strongly indicates the Martian “blueberries” probably formed in groundwater and not in surface water.

“The ‘blueberries’ easily could have formed in groundwater before there was standing water, if that did exist,” Chan says.

Other scientists previously offered various explanations for Meridiani Planum’s hematite, including that the mineral precipitated in large lakes or in hot springs when Mars’ ancient volcanoes were active, or that hematite was left when water leached away other minerals, or that it formed when volcanic ash deposits were altered chemically.
