The file Andrija Puharich: Water Decomposition by AC Electrolysis explains most of my project. I’m pretty busy, and I don’t have much extra time to work on this at all. That’s why it’s going pretty slowly at the present time.

The 2 pics “inside” and “outside” are of my modified reaction chamber. Basically, all it is is a PVC tank with a screw-off lid. Inside is mounted a 2” piece of copper pipe, inside that is a 1” copper pipe. If it all works as planned they will be changed out with stainless steel.

One wire is soldered to each copper pipe and the solder connection is sealed off with silicone. The two wires will come out near the top of the tank and be siliconed  inside and out to try to make the container air-tight.

I also included scans of my 3 circuits. There is a 600hz audio oscillator, a 62985hz oscillator for the carrier frequency, and an amplitude modulator to connect it all together.

If you have any questions, you can email me at venus fly trap@att.net.

 - Gary

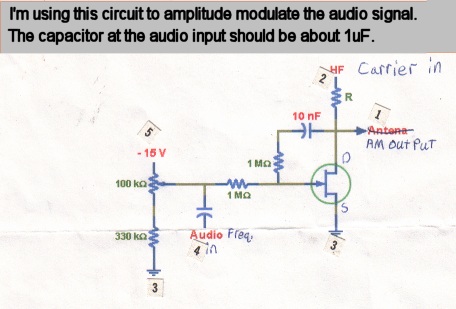

AM Modulator

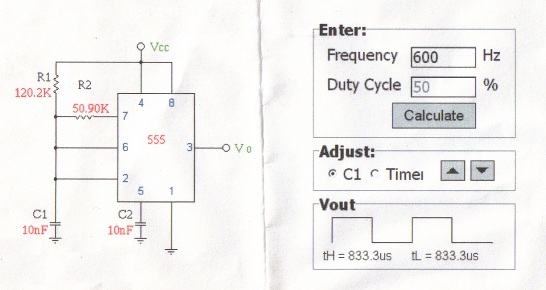

Audio Oscillator

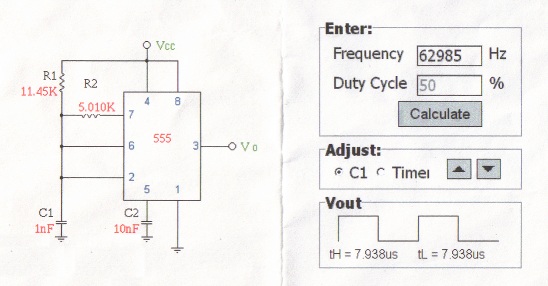

Carrier Oscillator

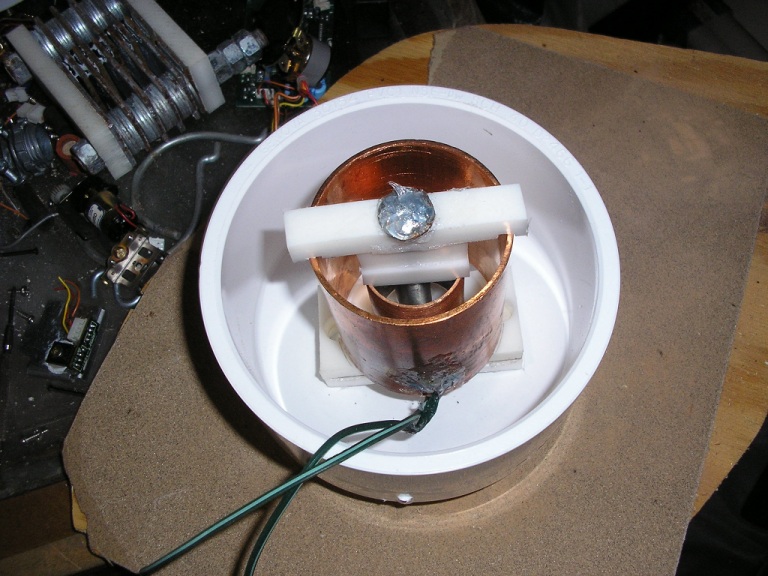

Inside View

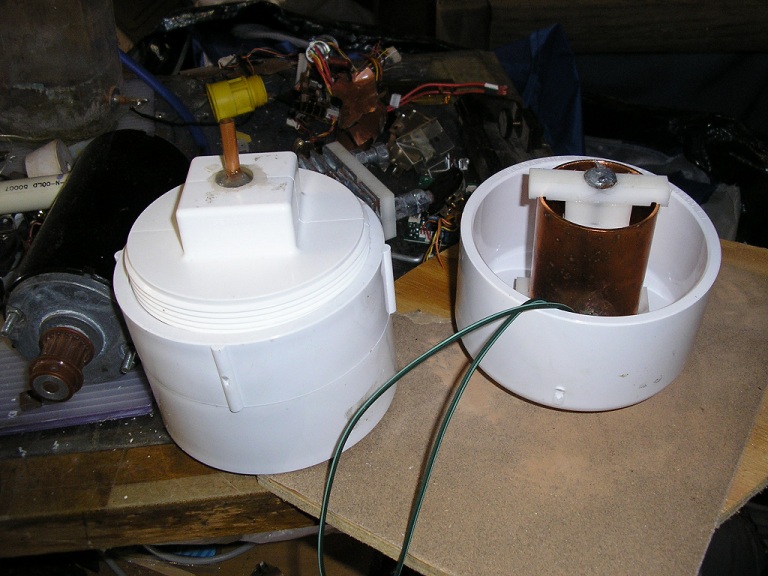

Outside View
